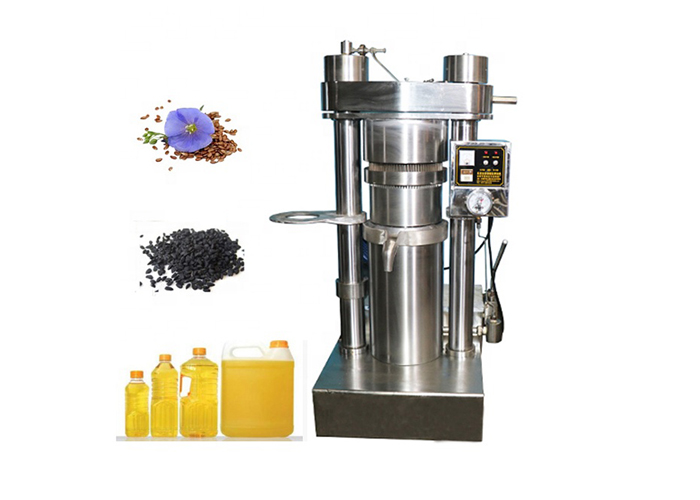

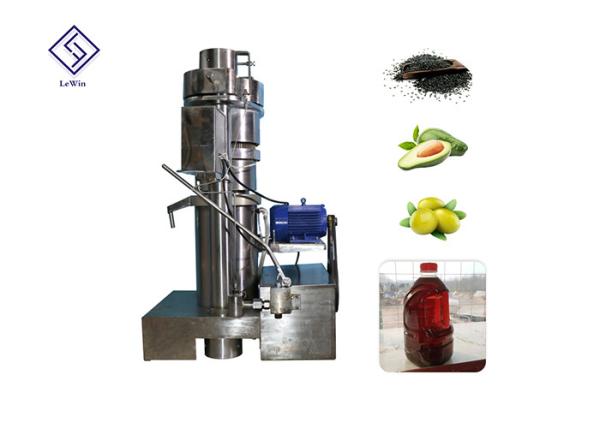

Manufacture edible oil hydraulic oil expeller machine walnut oil extraction
Product Description
Main Features
1.The main parts of the hydraulic oil press machine are piston, hydraulic cylinders, columns, beams on activities,
base, oil pump, cylinder, electric lap and automatic temperature control devices.
2. Our oil press has the advantages of high pressure, high oil yield, compact structure and controlled heating.
3.It is easy and safe to operate the oil press, which dramatically reduces labor intensity.
It can be widely used in the pressing of oil plants such as sesame, soybean, peanut, flax, walnut kernel, tea seed, almond kernel.
Main Paramater:
1.This model is YY-270,and we aslo have other different capacity machine.
2.We also can customized according to your requirments.
| Model | 6YY-270 |
| Capacity(kg/batch) | 13.5 |
| Weight(kg) | 1230 |
| Working pressure | 60Mpa |
| Power(single/3 phase) | 4.0/2.2 kw |
| Package size | 750*1010*1640 |
| Oil Cake Diameter | 270 mm |
Detailed Images

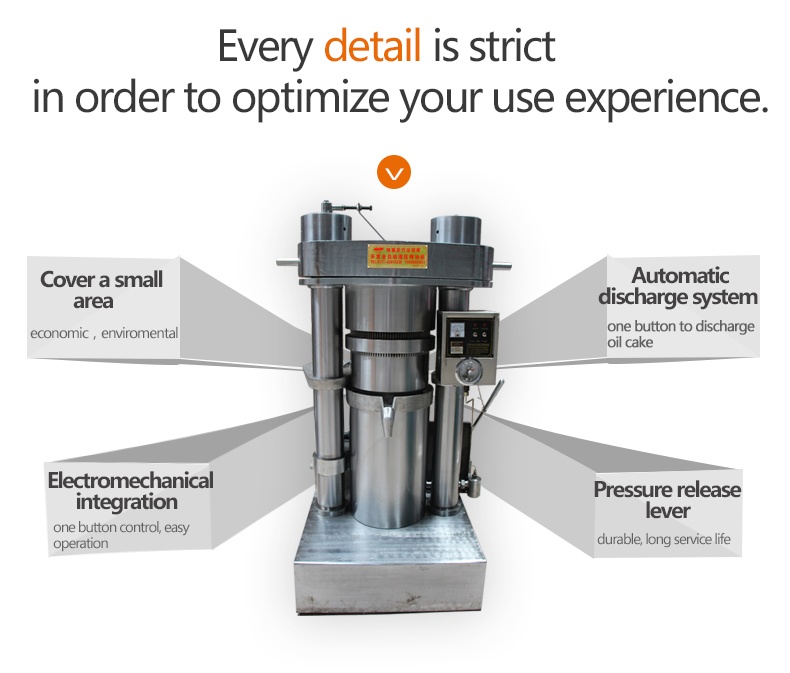

This machine mainly has three major components:
1, the main part 2, hydraulic system 3, electrical system
Hydraulic oil press is the most advanced equipment and it is a best choice instead of hand-operated workers currently. It is the easiest machine for people to operate and replace wearing parts least with the highest oil yielding rate among all the range of machines. Besides, it is particularly suitable for people from large cities to spend less money to buy real goods because of less amount of squeezing per time(4-23 kg / time), and it needs shorter time(8-l2 minutes / time) for processing. In addition, it can ensure fast processing on giving materials in rural towns, which is known as assured oil.
How to operate the hydraulic oil press machine?
Step 1: Before running, clean the oil tank, feed enough clean hydraulic oil, check every bolts if they are loose, check circuit if they connect well. Then pre-heating, 50-70℃ in summer and autumn, 70-90℃ in winter and spring. Finally run 1-2 minutes. When the oil changes thick in winter and spring, then run 5-10 minutes.
Step 2: Exhaust lampblack from the cooked oilseed, put it into the basket, then put the mat and separation board.
Step 3: Lift the hand shank of the manual valve, turn on to press. There must be a person when the main engine boosts. When reaching 55Mpa, it stops.
Step 4: When the pressure drops to 45MPa, the electric controlling system will turn on itself and the pressure will rise back. When there is no oil exuding, then finish the pressing.
Step 5: Turn off, press the hank shank downward to make the squeezing tank away 10mm. Then lift the hand shank and open the top plate.
Step 6: Turn on, oil cake rises to make the top plate tower above 5mm. Then turn off and take out separation board and mats and oil cake.
Step 7: Press the hand shank down, the plunger declines and start to press second time.
Steps for usage:
Why choose us?
1.We are manufacture for Industrial hydraulic oil press machine for avocado oil press
2.We are a factory manufacturing edible oil machine,best production capability,best quality control, Best Service.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipment.
5. CE ,competitve price.
Our Warehouse
We have our own factory and warehouse, so we can guarantee the quality of the oil press machine, if there are any other questions about our oil pressing machine, we can give you a best solution, in addition, We are factory direct sale, cut out the middleman, thus makes the price lowest for our customers. so if you need, please contact us freely!
Packing & Delivery
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
Generally 7-10 working days after receipt the deposit
After-service:
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
