Crude sunflower seed intermittence oil refinery equipment sunflower oil refinery process machine
Product Description
Introduction of oil refinery line:
A general term for a series of processes for removing solid impurities, free fatty acids, phospholipids, gums, waxes, pigments, odors, etc. contained in vegetable oils. Enhancing the nutritional value of edible oils has great benefits for human health.
Main Features
1.The small refined oil equipment adopts food grade stainless steel material and is polished to meet the food machinery standards.
2. Simple design, refined appearance, improve customer satisfaction.
3. The operation data is all displayed by the instrument, the operation is simple, and the operation is safe; .
4. Small refined oil equipment can achieve the dephosphorization, de-alkali, dehydration function of the oil, according to the needs of users can also perform constant temperature decolorization.
Paramater:

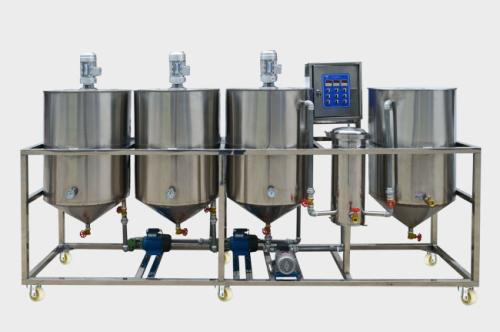

This is the main information of the four tanks oil refinery machine:
1,simple operation, high yield rate, low consumption, motor can be customized
2,Wide range of capacity for more choices of our custome
3,Wide application of oil press for more cost-effective solution
| Model | LW-4 |
| Tank Diameter | 700 mm |
| One tank capacity | 300kg oil |
| Working time | 12hours |
| Working one time capacity | 300kg oil |
| Main Power | 3Kw |
| Vacuum pump power | 0.81 Kw |
| Dimension | 3000*800*2100mm |
| Weight | 1300kg |
Detailed Images
The refining equipment processing capacity is related to the oil refining process and the oil grade, the refining tank processing cycle is related to the raw oil quality and the finished oil grade requirements.
Refining tank processing capacity 200-250L/tank, dehydration tank and refining tank are matched, decolorization tank filtration capacity 300L/tank, with time about 4-5 hours.
(1) If the crude oil quality is good, after heating, hydration, sedimentation, dehydration and other processes, about 4 hours to deal with one tank.
(2) If the crude oil quality is bad and the finished oil grade needs high requirement, after heating, hydration, sedimentation, alkali refining, washing, dehydration and other processes, about 12-24 hours for processing one tank.
Advantage:
(1) Simple design, low consumption and light weight, easy to handle and move.
(2) Easy for operating, low labor intensity and high economical profit

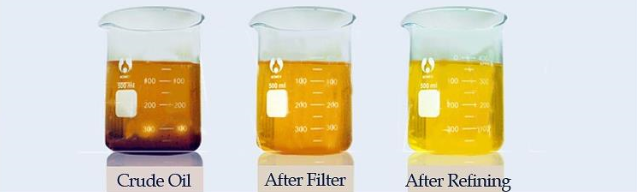

Comparison of oil after oil and refining:

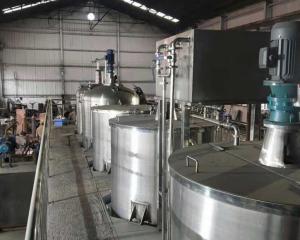

Our warehouse
We have our own factory and warehouse, so we can guarantee the quality of the oil refining machine, if there are any other questions about our oil refinery machine, we can give you a best solution, in addition, We are factory direct sale, cut out the middleman, thus makes the price lowest for our customers. so if you need, please contact us freely!
Packing & Delivery
Every set of the refining equipment within the peanut oil refinery machine would be carefully packed to against damages during the delivery and shipment. However, if you have extra requirements for the package and delivery, we will try our best to fulfill your needs. Any questions, please contact us without hestitation
Our Service
After-service part
1).The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will not provide service of with compensation as follows:
The damage caused by person and force majeure;
The damage caused by improper operating;
The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
FAQ
1. How to choose the suitable model for my business?
Tell us your requirement for machine and our sales team will work with engineer to outline the best model for you.
2.How long is the delivery time?
For normal orders, we can send within 5 days after we get the deposit. If it is a very large order, the delivery time may be a little longer.
3. Does your factory accept customization?
As a professional manufacturer, we can do almost any kind of customization.
